SAP Field Service Management (FSM) relies on timely and accurate service order data from SAP S/4HANA Cloud to dispatch technicians, schedule work, and close jobs efficiently. The standard integration between these two systems leverages SAP Event Mesh — a powerful, cloud-native messaging backbone on SAP Business Technology Platform (BTP) — to stream real-time service order lifecycle events into FSM.

However, not every customer has an active SAP Event Mesh subscription on BTP. This could be due to licensing constraints, cost considerations, or an IT strategy that minimises the number of BTP service subscriptions. For these customers, the standard event-driven integration path hits a wall before it even starts.

In this blog, I will walk through a practical workaround: a custom SAP Cloud Platform Integration (CPI) polling iFlow that periodically queries the S/4HANA Cloud Service Order OData API, formats the result as a synthetic Event Mesh payload, and hands it off to the standard “Replicate Service Order from SAP S/4HANA Cloud to SAP FSM” iFlow — no Event Mesh subscription required.

Note: This work will have some limitations and considersations before adopting.

How the Standard Integration Works

The standard SAP-delivered integration uses communication arrangement SAP_COM_0092 on the S/4HANA Cloud side to publish business events to SAP Event Mesh. A subscriber iFlow on CPI then picks up those events and replicates the affected service orders into FSM.

The four events subscribed to in the standard scenario are:

• sap/s4/beh/serviceorder/v1/ServiceOrder/Released/v1
• sap/s4/beh/serviceorder/v1/ServiceOrder/Completed/v1
• sap/s4/beh/serviceorder/v1/ServiceOrder/ReleaseRevoked/v1
• sap/s4/beh/serviceorder/v1/ServiceOrder/ChgdWhenReleased/v1

Each event carries a minimal payload (service order ID, UUID, type, and description). The CPI iFlow then fetches the full service order details and pushes them into FSM. This architecture is clean, near-real-time, and fully supported by SAP — but it has one hard prerequisite: SAP Event Mesh must be provisioned and configured on BTP.

The Challenge: Event Mesh as a Hard Prerequisite

For customers who have already established an S/4HANA Cloud-to-FSM integration but do not have an Event Mesh subscription, the above architecture creates a blocking dependency. Specifically:

1. SAP Event Mesh is a paid, separately subscribed BTP service. Customers who have not planned for it may not have it available.
2. Activating Event Mesh mid-project introduces procurement, provisioning, and configuration lead time — often weeks — that can delay go-live.
3. Some customers deliberately keep their BTP footprint minimal. Adding Event Mesh solely for service order integration conflicts with their platform governance model.
4. In brownfield or upgrade scenarios, re-configuring communication arrangements and queue subscriptions can introduce regression risk to existing integrations.

These constraints call for an alternative approach — one that achieves the same functional outcome (service order replication into FSM) without any dependency on SAP Event Mesh.

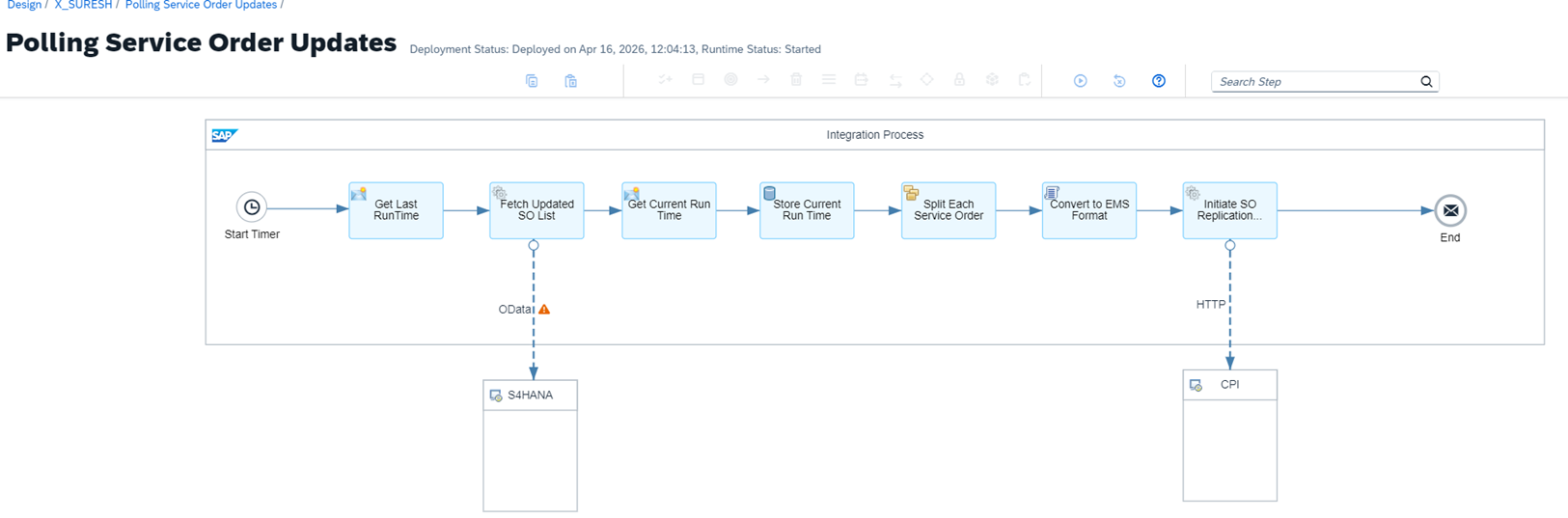

Workaround approach: CPI Polling iFlow

The workaround introduces a lightweight custom polling iFlow in CPI that mimics the role of SAP Event Mesh — without actually using it. The iFlow runs on a scheduled timer (for example, every 10 minutes), queries the S/4HANA Cloud Service Order OData API for records changed since the last run, constructs a synthetic Event Mesh-style JSON payload for each changed order, and invokes the standard “Replicate Service Order” iFlow via HTTPS — exactly as if the message had arrived from Event Mesh.

Crucially, the standard iFlow is left completely untouched. This ensures SAP support scope is preserved and future upgrades to the standard content remain non-breaking.

Step 1: Querying Changed Service Orders

The polling iFlow calls the standard OData API below, substituting the timestamp from the last successful run (stored as a CPI local variable):

GET /sap/opu/odata/sap/API_SERVICE_ORDER_SRV/A_ServiceOrder
  ?$select=ServiceOrder,ServiceObjectType,ServiceOrderUUID,ServiceOrderDescription,ServiceOrderType,ServiceDocChangedDateTime,ServiceOrderIsReleased,ServiceOrderIsCompleted,ServiceOrderIsRejected
  &$filter=(
    ServiceDocChangedDateTime gt datetimeoffset''
    and (ServiceOrderType eq 'SVO1' or ServiceOrderType eq 'SVO2'
         or ServiceOrderType eq 'RPO1' or ServiceOrderType eq 'RPO2')
    and (ServiceOrderIsReleased eq 'X'
         or ServiceOrderIsCompleted eq 'X'
         or ServiceOrderIsRejected eq 'X')
  )

The filter targets only the service order types that are relevant for FSM replication (SVO1, SVO2, RPO1, RPO2) and only records that are in a terminal or active business state (Released, Completed, or Rejected). This keeps the result set lean and avoids processing draft or in-progress orders that FSM does not yet need.

The last-run timestamp is read from a CPI local variable at the start of each execution and updated to the current timestamp at the end of a successful run. This creates a sliding window of changes and avoids re-processing already-replicated orders.

Step 2: Splitting and Iterating

The OData response may return multiple service orders in a single call. The iFlow uses a Splitter step to process each service order independently. This is important because:

• A failure for one service order does not block replication of others.
• Error handling and retry logic can be applied at the individual record level.
• The standard iFlow expects a single service order event per invocation, matching the one-event-per-message model of SAP Event Mesh.

Step 3: Constructing the Synthetic Event Mesh Payload

For each service order, the iFlow builds a JSON payload that is structurally identical to what the standard iFlow would receive from SAP Event Mesh. The event type in the payload is determined by the status flags returned by the OData API:

• ServiceOrderIsReleased = ‘X'  →  event type: ServiceOrder.Released.v1
• ServiceOrderIsCompleted = ‘X'  →  event type: ServiceOrder.Completed.v1
• ServiceOrderIsRejected = ‘X'  →  event type: ServiceOrder.ReleaseRevoked.v1

A sample constructed payload looks like this:

{
  "type": "sap.s4.beh.serviceorder.v1.ServiceOrder.Released.v1",
  "specversion": "1.0",
  "source": "/default/sap.s4.beh/0LEUVB6",
  "id": "42010aef-4c3b-1fe1-8eaa-82de726150ac",
  "time": "2026-04-16T05:21:15Z",
  "datacontenttype": "application/json",
  "data": {
    "ServiceOrder": "8000000176",
    "CustMgmtObjectType": "BUS2000116",
    "ServiceOrderUUID": "42010aef-4c8d-1fd1-8de5-b5128633bb6f",
    "ServiceOrderDescription": "Annual maintenance visit",
    "ServiceOrderType": "SVO1"
  }
}

The id field can be populated using the ServiceOrderUUID, and the time field is set to the current execution timestamp. The source field should match the BTP source identifier configured in the target standard iFlow — check the iFlow's configuration parameters to confirm the correct value.

Step 4: Invoking the Standard iFlow via HTTPS

Rather than using a ProcessDirect channel (which would require modifying the standard iFlow to expose an internal endpoint), the custom iFlow calls the standard iFlow's public HTTPS endpoint. The technical user performing this call must be assigned the WorkspaceArtifactsDeploy role in CPI to have permission to trigger iFlow executions.

This design keeps a clean boundary: the standard iFlow remains a black box from the custom iFlow's perspective. If SAP updates the standard content in a future release, no changes are needed in the custom polling iFlow as long as the input message contract (the EMS JSON structure) remains stable.

Here is a crisp, highly structured version of your content, optimized for quick scanning and professional review.

⚠️ Limitations & Considerations: Polling Workaround

While this polling workaround is a pragmatic alternative, it lacks the native capabilities of an event-driven architecture. Review these 7 critical limitations before deploying to production.

1. Polling Latency (Near-Real-Time, Not Real-Time)

• The Gap: Scheduled runs (e.g., every 10 mins) introduce a maximum data lag equal to the polling interval, whereas an event-driven model pushes changes in seconds.

• Impact: Field techs may act on stale, modified, or canceled service order data on their mobile apps—a high risk for emergency work orders.

• Mitigation: Shorten the polling interval during peak hours, balancing against S/4HANA Cloud API rate limits.

2. Snapshot-Only (No Intermediate States)

• The Gap: Polling only captures a snapshot of the latest state. If an order quickly transitions through multiple statuses between runs (e.g., Released $\rightarrow$ Modified $\rightarrow$ Completed), intermediate states are lost.

• Impact: FSM business rules triggered by specific state transitions (like ChgdWhenReleased or parts checks) will be skipped, causing workflow inconsistencies.

• Mitigation: Redesign FSM business rules (if any) to trigger actions based on the final current state rather than historical transitions.

3. Missing ReleaseRevoked Context

• The Gap: The standard integration publishes a distinct ReleaseRevoked event when a released order is recalled. Polling only detects a raw “Rejected/Revoked” status and cannot determine the historical sequence.

• Impact: SLA timers or automations meant to cancel upon a revoke action may fail to trigger if the release and revoke both happen within a single polling window.

4. Increased S/4HANA Cloud API Load

• The Gap: Unlike push events, polling repeatedly queries S/4HANA OData APIs on a fixed schedule, even when no data has changed.

• Impact: Unnecessary network traffic and rapid consumption of your S/4HANA API license quotas.

• Mitigation: Implement an adaptive schedule (e.g., poll less frequently overnight/weekends) and routinely monitor API usage logs.

5. Loss of ChgdWhenReleased Granularity

• The Gap: The standard event model sends precise, field-level delta triggers (e.g., only the schedule time changed). Polling can only see that a change occurred, forcing a full-record refresh to FSM.

• Impact: FSM automations that depend on specific field triggers (like sending an SMS to a tech only if the priority escalates) cannot be targeted cleanly. FSM will only see a bulk data overwrite.

6. Timestamp-Based Edge Cases

• The Gap: Delta detection relies strictly on filtering the ServiceDocChangedDateTime field.

• Impact: Clock drift between CPI and S/4HANA can cause skipped or double-processed records.

  If the CPI local variable storing the Last Run Timestamp is wiped (via redeployment or restart), data will be missed without a manual reset. Boundary records matching the exact timestamp filter might be dropped.

• Mitigation: Build a 1–2 minute overlap window into your timestamp logic, and set up a monitoring alert for missing or stale timestamp variables.

Conclusion

The absence of SAP Event Mesh is not a roadblock for integrating S/4HANA Cloud service orders with SAP FSM. A custom CPI polling iFlow that mimics an Event Mesh payload offers a viable, non-invasive workaround. By keeping the standard “Replicate Service Order” iFlow completely unmodified, this conservative approach isolates the custom logic into a single, easily maintainable layer.

However, teams must accept the trade-offs: near-real-time latency, the loss of intermediate state history, and added operational complexity around error handling and timestamp management. With a robust retry mechanism and proper monitoring, this architecture can reliably support production workloads.
